Concrete Floor Thickness for Car Hoist Installation

Key Factors to Consider When Installing a Car Hoist in Your Garage

When contemplating the installation of a car hoist in your garage, it is of utmost importance to ensure that your concrete floor meets specific requirements. A strong and stable foundation is essential not only for the efficient functioning of the hoist but also for the protection of your vehicles and the safety of anyone operating the equipment. By preparing adequately and following strict installation guidelines, you can significantly enhance both the performance and durability of your hoist, ultimately making your investment worthwhile and secure.

Most car hoists necessitate a concrete slab that is a minimum of 100mm (4 inches) thick. This particular measurement is crucial, as it facilitates the even distribution of weight from both the vehicle and the hoist, drastically reducing the likelihood of cracking or sinking over time. For heavier-duty hoists, it is advisable to opt for a thicker concrete slab, potentially increasing to 150mm (6 inches), to ensure peak performance, stability, and safety during operation, which is especially critical for frequent use.

Comprehensive Guide to Determining the Optimal Concrete Thickness for Your Car Hoist

The depth of your concrete floor is a critical aspect of the safe installation and effective operation of a car hoist. It is vital to assess various factors when evaluating the appropriate thickness for your slab to ensure it can adequately support the loads it will encounter during usage. By understanding these essential factors, you can avoid costly errors while enhancing the overall safety and functionality of your garage setup, ensuring that all operations are conducted smoothly.

Assessing Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, it is crucial to comprehend the total weight that your concrete floor must support. This assessment includes not only the weight of the vehicle itself but also the weight of the hoist, which can significantly contribute additional load to the floor.

A standard passenger vehicle typically weighs between 1,500 to 2,000 kg, while the hoist may add another 500 to 1,000 kg. Furthermore, it is prudent to include extra weight as a safety buffer to ensure that the structure can handle unforeseen circumstances. This thorough evaluation will aid in maintaining a secure and safe garage environment for both you and your vehicles.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is usually adequate. However, if your intention is to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to guarantee safety and stability during operation. Always prioritise safety when determining these specifications.

Engaging with a structural engineer is a wise choice. They possess the specialised knowledge required to provide personalised recommendations and assist you in calculating the precise thickness needed based on your unique circumstances and requirements, ensuring that your installation is not only safe but also optimal for performance.

Understanding Different Car Hoist Types and Their Concrete Thickness Requirements

It is essential to recognise that various types of car hoists come with specific requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular choices among homeowners looking to incorporate a car hoist into their garages. Understanding these differences can significantly influence your planning and installation process, leading to better outcomes.

Two-post lifts typically concentrate pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures stability and prevents potential cracking, which could undermine the safety of the installation.

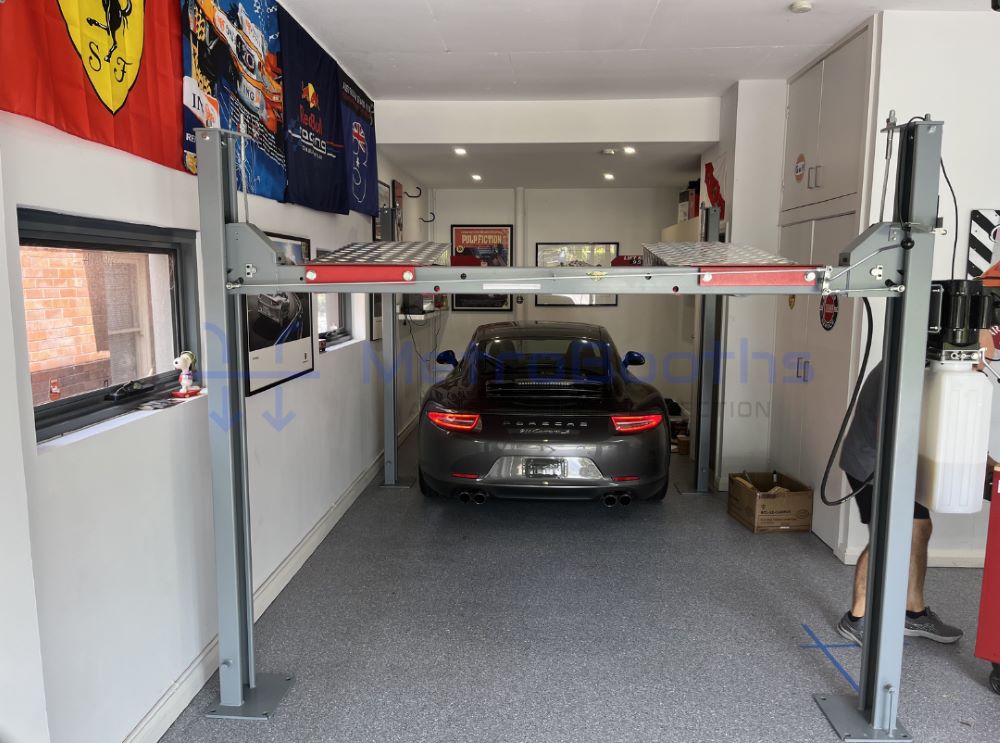

Conversely, four-post lifts distribute weight more evenly across a larger area, allowing them to operate effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This knowledge is crucial for making informed decisions about your garage setup and ensuring the longevity of your equipment.

Always refer to the manufacturer’s specifications for the hoist you are considering, as they typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is vital for the optimal performance and longevity of your hoist, ensuring that it operates safely and efficiently.

Keep in mind that these recommendations serve as general guidelines. Your specific requirements may vary based on the configuration of your garage and the types of vehicles you intend to lift, so it is wise to tailor your approach accordingly to ensure safety and effectiveness.

Understanding the Importance of Concrete Strength and Reinforcement Methods

The strength of your concrete is as critical as its thickness. High-strength concrete can often be effectively utilised at a thinner depth while still providing sufficient support for heavy loads. This is particularly relevant in the context of a car hoist installation, as it directly impacts both safety and performance.

It is recommended to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts advocate opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting. This ensures that your installation can withstand the demands placed upon it, providing peace of mind.

Incorporating reinforcement techniques is essential for significantly improving the durability of your concrete. The addition of steel mesh or rebar can greatly enhance the overall strength of your concrete floor. Consequently, this could enable you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation, thereby maximising safety.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an economical choice for budget-conscious homeowners seeking quality and performance.

If you have concerns about potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in mitigating the formation and propagation of small cracks over time, enhancing the longevity of your installation and maintaining the aesthetic quality of your garage, thus protecting your investment.

Essential Installation Factors for Ensuring Effective Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and ongoing floor maintenance are of paramount importance. By paying close attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your valuable investment and providing peace of mind for all users.

Critical Site Preparation and Concrete Pouring Techniques for Successful Car Hoist Installation

Prior to the installation of your car hoist, it is imperative to confirm that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use, which is critical for your garage’s functionality.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, thus preventing issues during operation and ensuring safety.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately evaluate its condition, ensuring a safe and effective installation process that adheres to all necessary standards.

Vital Ongoing Maintenance Practices Following Your Car Hoist Installation

Upon completing your car hoist installation, it is crucial to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality and safety of your hoist, ensuring reliable operation.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time, leading to structural issues that may compromise safety. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and maintaining an attractive garage environment.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, allowing you to operate your hoist with confidence and assurance of safety.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for your garage that adds value and functionality.

Frequently Asked Questions About Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some commonly asked questions related to the concrete requirements for various types of lifts, providing you with the knowledge needed to make informed decisions that align with best practices.

What is the recommended minimum concrete thickness for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation, ensuring that your installation complies with all safety standards and regulations.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind and ensuring a successful installation process that adheres to all necessary guidelines.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards that could endanger lives and property. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation and longevity of the installation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, accommodating a wider variety of vehicles and ensuring reliability.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring a safe environment for vehicle lifting and operation.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, helping you to avoid potential hazards and complications.
